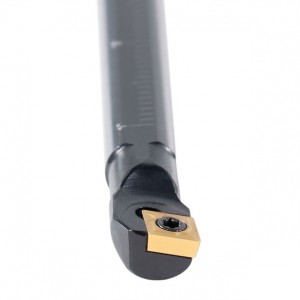

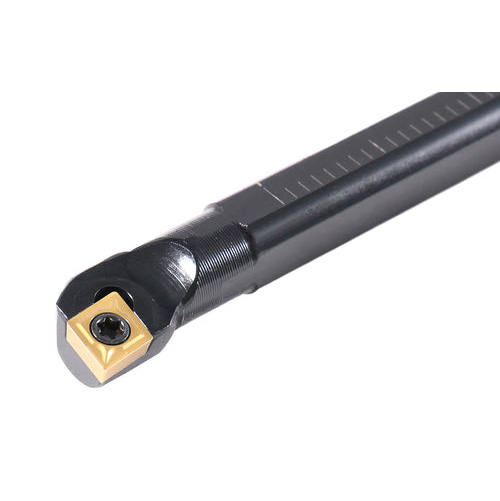

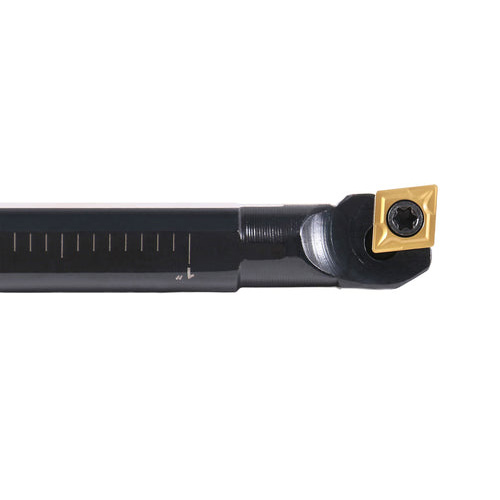

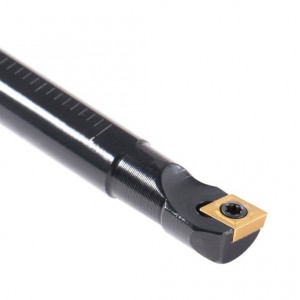

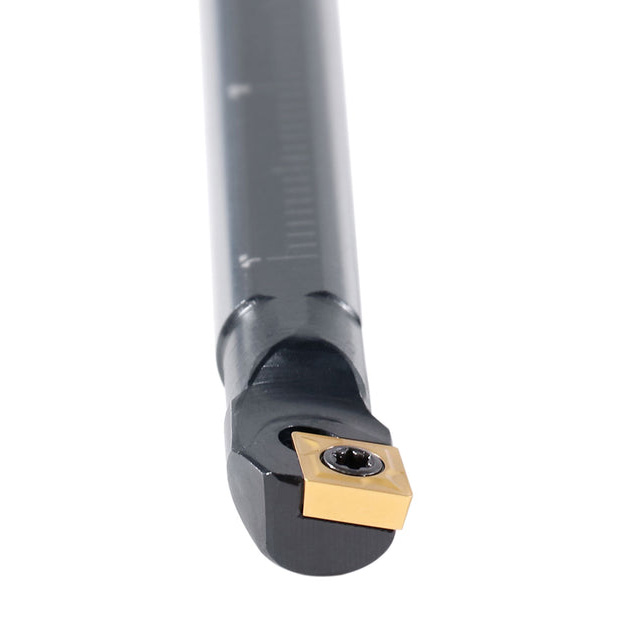

SCFC Indexable Boring Bar With Right And Left Hand
SCFC Indexable Boring Bar
● Toolholder Style: S-SCFC Or A-SCFC
● Insert Compatibility: CCMT
● Hand of Holder: Right or Left
● Insert Holding Method: Screw
● Coolant Through： A type is available
Without Coolant Hole
| MODEL | D | F | L | d | Insert | Right Hand | Left Hand |
| S10K-SCFCR/L06 | 10 | 7 | 125 | 13 | CCMT0602 | 660-7050 | 660-7061 |
| S12M-SCFCR/L06 | 12 | 9 | 150 | 16 | CCMT0602 | 660-7051 | 660-7062 |
| S16R-SCFCR/L09 | 16 | 11 | 200 | 20 | CCMT09T3 | 660-7052 | 660-7063 |
| S20S-SCFCR/L09 | 20 | 13 | 250 | 25 | CCMT09T3 | 660-7053 | 660-7064 |
| S25T-SCFCR/L12 | 25 | 17 | 300 | 32 | CCMT1204 | 660-7054 | 660-7065 |
| S32U-SCFCR/L12 | 32 | 22 | 350 | 40 | CCMT1204 | 660-7055 | 660-7066 |
| S40U-SCFCR/L12 | 40 | 27 | 350 | 50 | CCMT1204 | 660-7056 | 660-7067 |
| S06M-SCFCR/L2 | 3/8 | 1/4 | 6.0 | 1/2 | CCMT21.51 | 660-7057 | 660-7068 |
| S08Q-SCFCR/L2 | 1/2 | 5/16 | 7.0 | 5/8 | CCMT21.51 | 660-7058 | 660-7069 |
| S10R-SCFCR/L3 | 5/8 | 13/32 | 8.0 | 13/16 | CCMT32.52 | 660-7059 | 660-7070 |
| S12S-SCFCR/L3 | 3/4 | 1/2 | 10 | 1 | CCMT32.52 | 660-7060 | 660-7071 |
With Coolant Hole
| MODEL | D | F | L | d | Insert | Right Hand | Left Hand |
| A12K-ACFCR/L06 | 12 | 9 | 125 | 16 | CCMT0602 | 660-7072 | 660-7082 |
| A16M-ACFCR/L06 | 16 | 11 | 150 | 20 | CCMT09T3 | 660-7073 | 660-7083 |
| A20Q-ACFCR/L09 | 20 | 13 | 180 | 25 | CCMT09T3 | 660-7074 | 660-7084 |
| A25R-ACFCR/L09 | 25 | 17 | 200 | 32 | CCMT1204 | 660-7075 | 660-7085 |
| A32S-ACFCR/L12 | 32 | 22 | 250 | 40 | CCMT1204 | 660-7076 | 660-7086 |
| A40T-ACFCR/L12 | 40 | 27 | 300 | 50 | CCMT1204 | 660-7077 | 660-7087 |
| A06J-ACFCR/L12 | 3/8 | 1/4 | 4.5 | 1/2 | CCMT21.51 | 660-7078 | 660-7088 |
| A08M-ACFCR/L2 | 1/2 | 5/16 | 6.0 | 5/8 | CCMT21.51 | 660-7079 | 660-7089 |
| A10Q-ACFCR/L3 | 5/8 | 13/32 | 7.0 | 13/16 | CCMT32.52 | 660-7080 | 660-7090 |
| A12R-ACFCR/L3 | 3/4 | 1/2 | 8.0 | 1 | CCMT32.52 | 660-7081 | 660-7091 |
