Precision Monoblock Vernier Caliper With Nib Style Jaws Of Metric & Imperial For Industrial
Vernier Caliper

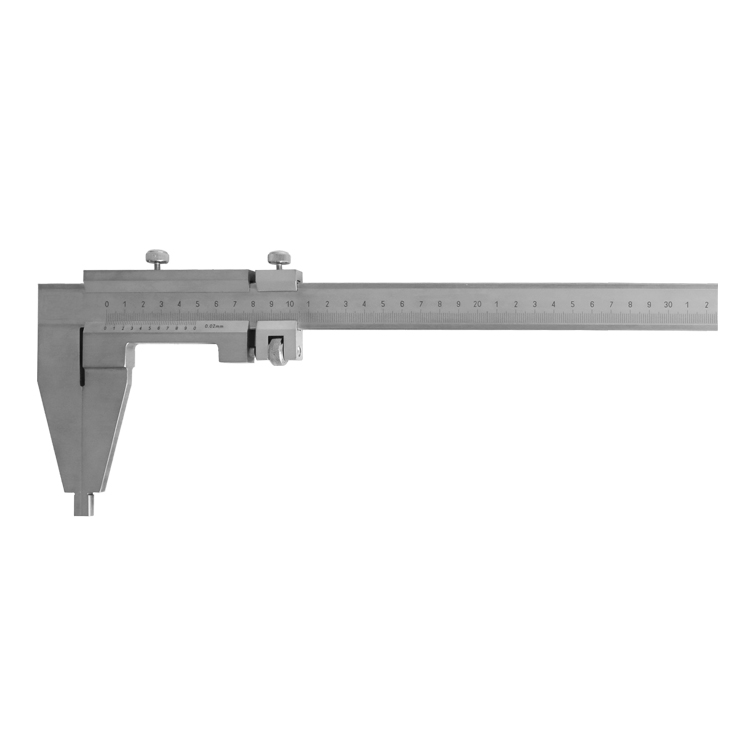

We are delighted that you are interested in our Monoblock Vernier Caliper With Nib Style Jaws. It is a specialized tool designed for measuring depths and narrow spaces. Unlike traditional vernier calipers, it only has a lower jaw, making it more suitable for situations where deeper measurements are required.
Metric
Inch
| Range | Graduation | A | B | C | D | Order Number |
| 0-500mm | 0.02mm | 100 | 20 | 18 | 24 | 860-0539 |
| 0-500mm | 0.02mm | 150 | 20 | 18 | 24 | 860-0540 |
| 0-600mm | 0.02mm | 100 | 20 | 18 | 24 | 860-0541 |
| 0-600mm | 0.02mm | 150 | 20 | 18 | 24 | 860-0542 |
| 0-800mm | 0.02mm | 100 | 20 | 24 | 31 | 860-0543 |
| 0-800mm | 0.02mm | 150 | 20 | 24 | 31 | 860-0544 |
| 0-1000mm | 0.02mm | 200 | 20 | 24 | 31 | 860-0545 |
| 0-1500mm | 0.02mm | 150 | 20 | 24 | 42 | 860-0546 |
| 0-2000mm | 0.02mm | 200 | 20 | 24 | 42 | 860-0547 |
| 0-500mm | 0.05mm | 100 | 20 | 18 | 24 | 860-0548 |
| 0-500mm | 0.05mm | 150 | 20 | 18 | 24 | 860-0549 |
| 0-600mm | 0.05mm | 100 | 20 | 18 | 24 | 860-0550 |
| 0-600mm | 0.05mm | 150 | 20 | 18 | 24 | 860-0551 |
| 0-800mm | 0.05mm | 100 | 20 | 24 | 31 | 860-0552 |
| 0-800mm | 0.05mm | 150 | 20 | 24 | 31 | 860-0553 |
| 0-1000mm | 0.05mm | 200 | 20 | 24 | 31 | 860-0554 |
| 0-1500mm | 0.05mm | 150 | 20 | 24 | 42 | 860-0555 |
| 0-2000mm | 0.05mm | 200 | 20 | 24 | 42 | 860-0556 |
| Range | Graduation | A | B | C | D | Order Number |
| 0-20" | 0.001" | 100 | 20 | 18 | 24 | 860-0557 |
| 0-20" | 0.001" | 150 | 20 | 18 | 24 | 860-0558 |
| 0-24" | 0.001" | 100 | 20 | 18 | 24 | 860-0559 |
| 0-24" | 0.001" | 150 | 20 | 18 | 24 | 860-0560 |
| 0-32" | 0.001" | 100 | 20 | 24 | 31 | 860-0561 |
| 0-32" | 0.001" | 150 | 20 | 24 | 31 | 860-0562 |
| 0-40" | 0.001" | 200 | 20 | 24 | 31 | 860-0563 |
| 0-60" | 0.001" | 150 | 20 | 24 | 42 | 860-0564 |
| 0-80" | 0.001" | 200 | 20 | 24 | 42 | 860-0565 |
| 0-20" | 1/128" | 100 | 20 | 18 | 24 | 860-0566 |
| 0-20" | 1/128" | 150 | 20 | 18 | 24 | 860-0567 |
| 0-24" | 1/128" | 100 | 20 | 18 | 24 | 860-0568 |
| 0-24" | 1/128" | 150 | 20 | 18 | 24 | 860-0569 |
| 0-32" | 1/128" | 100 | 20 | 24 | 31 | 860-0570 |
| 0-32" | 1/128" | 150 | 20 | 24 | 31 | 860-0571 |
| 0-40" | 1/128" | 200 | 20 | 24 | 31 | 860-0572 |
| 0-60" | 1/128" | 150 | 20 | 24 | 42 | 860-0573 |
| 0-80" | 1/128" | 200 | 20 | 24 | 42 | 860-0574 |
Metric & Inch
| Range | Graduation | A | B | C | D | Order Number |
| 0-20"/0-500mm | 0.02mm/(0.001") | 100 | 20 | 18 | 24 | 860-0575 |
| 0-20"/0-500mm | 0.02mm/(0.001") | 150 | 20 | 18 | 24 | 860-0576 |
| 0-24"/0-600mm | 0.02mm/(0.001") | 100 | 20 | 18 | 24 | 860-0577 |
| 0-24"/0-600mm | 0.02mm/(0.001") | 150 | 20 | 18 | 24 | 860-0578 |
| 0-32"/0-800mm | 0.02mm/(0.001") | 100 | 20 | 24 | 31 | 860-0579 |
| 0-32"/0-800mm | 0.02mm/(0.001") | 150 | 20 | 24 | 31 | 860-0580 |
| 0-40"/0-1000mm | 0.02mm/(0.001") | 200 | 20 | 24 | 31 | 860-0581 |
| 0-60"/0-1500mm | 0.02mm/(0.001") | 150 | 20 | 24 | 42 | 860-0582 |
| 0-80"/0-2000mm | 0.02mm/(0.001") | 200 | 20 | 24 | 42 | 860-0583 |
| 0-20"/0-500mm | 0.05mm/(1/128") | 100 | 20 | 18 | 24 | 860-0584 |
| 0-20"/0-500mm | 0.05mm/(1/128") | 150 | 20 | 18 | 24 | 860-0585 |
| 0-24"/0-600mm | 0.05mm/(1/128") | 100 | 20 | 18 | 24 | 860-0586 |
| 0-24"/0-600mm | 0.05mm/(1/128") | 150 | 20 | 18 | 24 | 860-0587 |
| 0-32"/0-800mm | 0.05mm/(1/128") | 100 | 20 | 24 | 31 | 860-0588 |
| 0-32"/0-800mm | 0.05mm/(1/128") | 150 | 20 | 24 | 31 | 860-0589 |
| 0-40"/0-1000mm | 0.05mm/(1/128") | 200 | 20 | 24 | 31 | 860-0590 |
| 0-60"/0-1500mm | 0.05mm/(1/128") | 150 | 20 | 24 | 42 | 860-0591 |
| 0-80"/0-2000mm | 0.05mm/(1/128") | 200 | 20 | 24 | 42 | 860-0592 |
Application
Functions For Monoblock Vernier Caliper With Nib Style Jaws :
1. Depth Measurement: The extended lower jaw vernier caliper, featuring solely a lower jaw, excels in measuring greater depths, like hole depths or internal distances within pipes.
2. Narrow Space Measurement: Its unique design enables it to measure dimensions in confined spaces, such as the internal dimensions of mechanical components.
3. High Precision: Known for its precision akin to standard vernier calipers, it satisfies the need for accurate measurements.
Usage For Monoblock Vernier Caliper With Nib Style Jaws :
1. Size Selection: Pick the appropriate extended lower jaw vernier caliper based on the object's dimensions, ensuring compatibility with the measurement requirements.
2. Secure Grip: Firmly hold the vernier caliper to maintain stability during measurements and prevent inaccuracies.
3. Placement Accuracy: Carefully position the lower jaw at the desired measurement spot, ensuring proper contact with the object.
3. Reading Precision: Interpret the measurement readings from the caliper's scale attentively, ensuring accuracy.
Precautions For Monoblock Vernier Caliper With Nib Style Jaws:
1. Avoid Overexertion: Refrain from applying excessive force to prevent damage to the tool or inaccuracies in measurements.
2. Regular Cleaning: Keep the vernier caliper clean to maintain measurement accuracy by removing dust or dirt accumulation.
3. Proper Storage: Store the vernier caliper in a dry, clean environment when not in use to prevent damage from moisture or other factors.
4. Range Limitations: Be mindful not to exceed the caliper's measurement range to ensure accuracy and avoid damaging the tool. A
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More
Matching Items
Matched Caliper：Digital Caliper, Dial Caliper
Solution
Technical Support:
We are delighted to be your solution provider for ER collet. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for ER collet. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More
Packing
Packaged in a plastic box. Then packed in an outer box. It can be well protect the vernier caliper.
Also customized packing is welcomed.
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
