Precision V Block Set With M Type

In the intricate landscape of precision workholding, V blocks stand as a powerhouse, wielding unparalleled capabilities to secure and position workpieces with exceptional accuracy. This dynamic tool proves indispensable across diverse industries where precision machining, meticulous inspection, and exacting assembly are not merely aspirations but absolute imperatives.

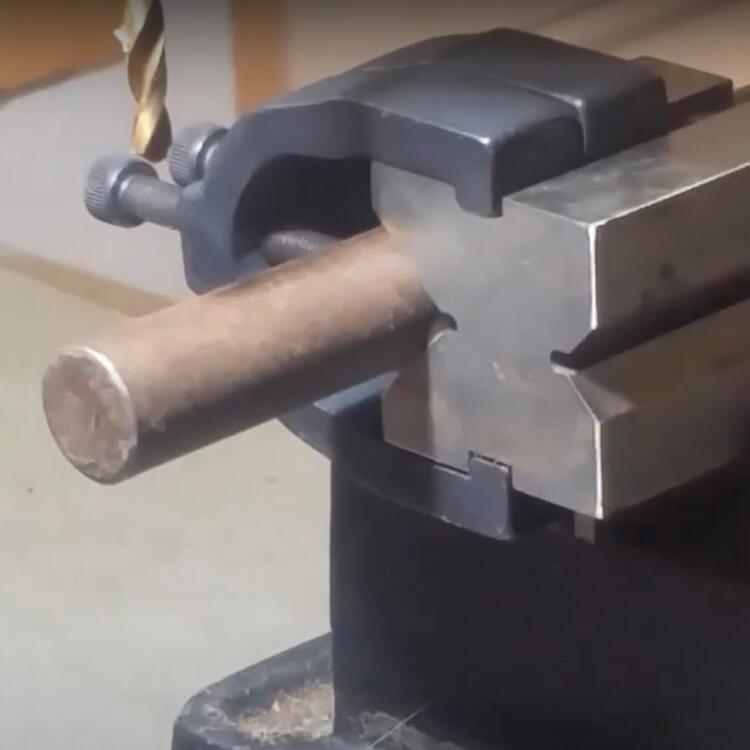

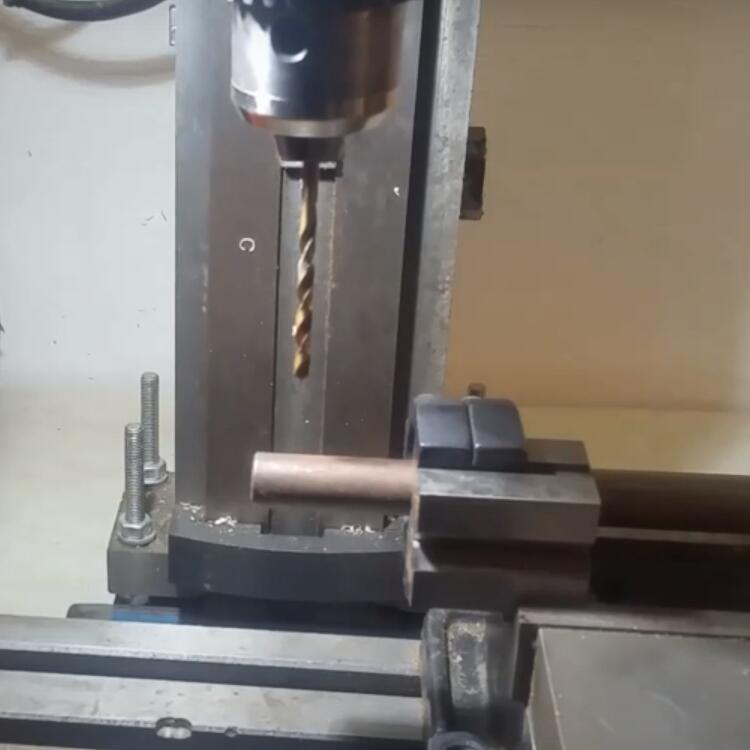

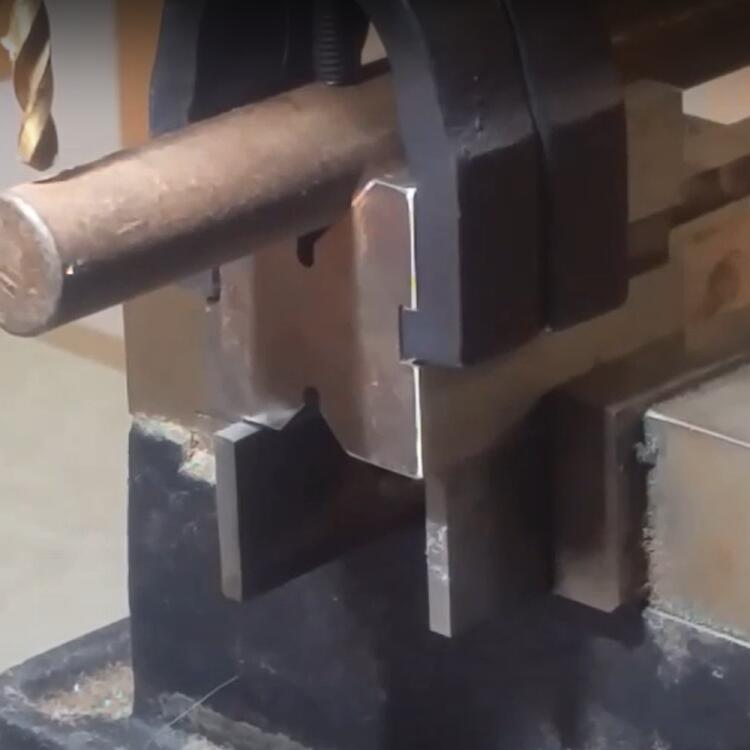

Within the realm of machining operations, V blocks serve as indispensable allies, offering unwavering support during milling, drilling, and grinding processes. The V-shaped groove in these blocks provides a stable embrace for cylindrical or round workpieces, enabling machining operations to unfold with a symphony of precision and repeatability.

The inherent accuracy of V blocks makes them invaluable in inspection and metrology applications. Workpieces securely cradled in V blocks undergo meticulous scrutiny using precision measuring instruments. This setup empowers inspectors to delve into dimensions, angles, and concentricity with a level of precision seamlessly aligned with stringent tolerances.

In the domain of tool and die making, where precision is the very foundation, V blocks take center stage. These tools facilitate the precise placement of workpieces during the creation and verification of intricate molds and dies. The stability provided by V blocks ensures that machining processes yield components with exact specifications crucial for tool and die production.

V blocks play a critical role in welding and fabrication processes. Welders leverage V blocks to securely grasp and align metal pieces, orchestrating welds with a symphony of accuracy. The firm pressure applied ensures the structural integrity of the welded assembly, ensuring a seamless integration of components.

During assembly processes, V blocks act as conductors orchestrating the precise alignment and fitting of components. Whether in the automotive or aerospace realm, this tool ensures that parts are cradled securely in the correct orientation, laying the foundation for an assembly that meets exacting quality standards and functional requirements.

V blocks emerge as invaluable educational tools, especially in engineering and machining courses. Students engage with these tools to grasp workholding principles, geometric tolerances, and precision measurement. The hands-on experience gained through V blocks enriches students’ understanding of fundamental engineering concepts.

In the fast-paced arena of rapid prototyping, where swift and accurate validation is paramount, V blocks take center stage. These tools contribute to securing prototype components during testing and evaluation, ensuring that design specifications are met before transitioning to full-scale production.

In the aerospace and defense industries, where adherence to stringent quality and safety standards is non-negotiable, V blocks become integral. This tool plays a pivotal role in the precision manufacturing of critical components, guaranteeing alignment with exact specifications for aircraft components and defense equipment.
The applications of V blocks are not just diverse but pivotal across industries that prioritize precision and accuracy. From machining to inspection, tool and die making to assembly operations, this tool stands as an indispensable element in the arsenal of precision workholding, contributing to the creation of high-quality, reliable, and meticulously crafted components.

• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery

1 x V Block
1 x Protective Case
1x Inspection Report By Our Factory
