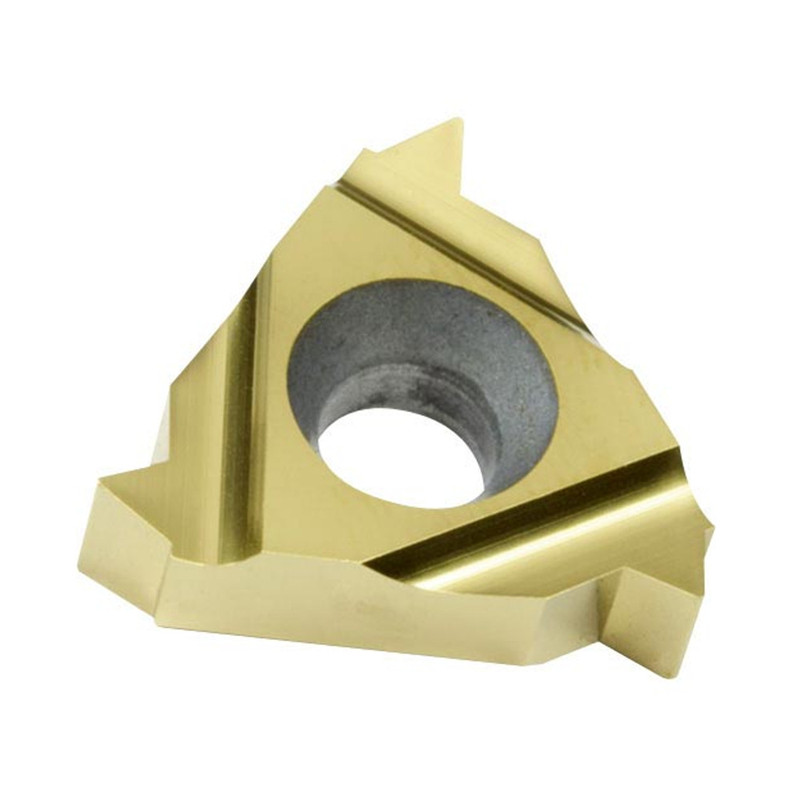

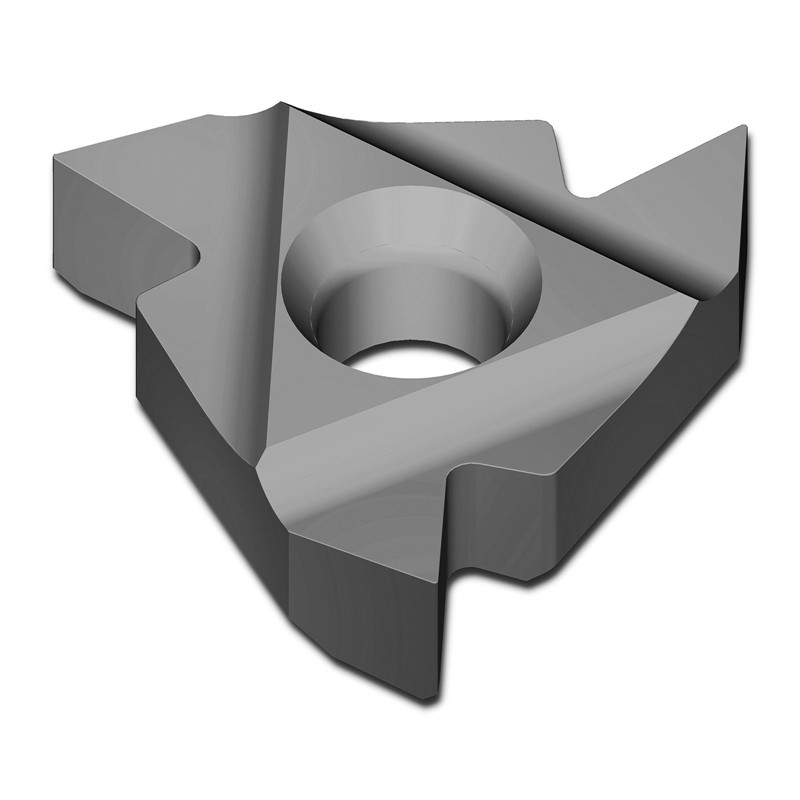

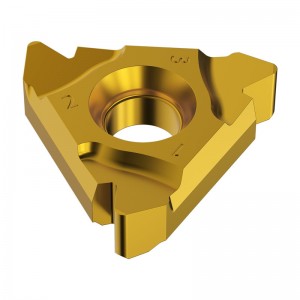

Partial profile 60° Threading Insert With ER & IR Type

Products

Partial profile 60° Threading Insert With ER & IR Type

product_icons_img
product_icons_img
product_icons_img
product_icons_img

We warmly welcome you to explore our website and discover the threading insert.
We’re delighted to offer you complimentary samples for testing of threading insert, and we’re here to provide you with OEM, OBM, and ODM services.

Below are the product specifications for :
● E for external thread, I for internal thread
● R for right hand, L for left hand
● 60 for partial profile 60°

If you have any questions or would like to inquire about pricing, please don’t hesitate to reach out to us.

Specification

P: Steel
M: Stainless Steel
K: Cast Iron
N: Non-ferrous Metals and Super Alloys

size
Model mm tpi
A 0.5-1.5 48-16
AG 0.5-3.0 48-8
G 1.75-3.0 14-8
N 3.5-5.0 7-5
Q 5.5-6.0 4.5-4

External Thread

Model L IC d P M K N
11ER A60 11 6.35 3 660-7363 660-7375 660-7387 660-7399
16ER A60 16 9.525 4 660-7364 660-7376 660-7388 660-7400
16ER AG60 16 9.525 4 660-7365 660-7377 660-7389 660-7401
16ER G60 16 9.525 4 660-7366 660-7378 660-7390 660-7402
22ER N60 22 12.7 5.1 660-7367 660-7379 660-7391 660-7403
27ER Q60 27 15.875 6.35 660-7368 660-7380 660-7392 660-7404
11EL A60 11 6.35 3 660-7369 660-7381 660-7393 660-7405
16EL A60 16 9.525 4 660-7370 660-7382 660-7394 660-7406
16EL AG60 16 9.525 4 660-7371 660-7383 660-7395 660-7407
16EL G60 16 9.525 4 660-7372 660-7384 660-7396 660-7408
22EL N60 22 12.7 5.1 660-7373 660-7385 660-7397 660-7409
27EL Q60 27 15.875 6.35 660-7374 660-7386 660-7398 660-7410

Internal Thread

Model L IC d P M K N
06IR A60 6 3.97 2.1 660-7411 660-7427 660-7443 660-7459
08IR A60 8 4.76 2.1 660-7412 660-7428 660-7444 660-7460
11IR A60 11 6.35 3 660-7413 660-7429 660-7445 660-7461
16IR A60 16 9.525 4 660-7414 660-7430 660-7446 660-7462
16IR AG60 16 9.525 4 660-7415 660-7431 660-7447 660-7463
16IR G60 16 9.525 4 660-7416 660-7432 660-7448 660-7464
22IR N60 22 12.7 5.1 660-7417 660-7433 660-7449 660-7465
27IR Q60 27 15.875 6.35 660-7418 660-7434 660-7450 660-7466
06IL A60 6 3.97 2.1 660-7419 660-7435 660-7451 660-7467
08IL A60 8 4.76 2.1 660-7420 660-7436 660-7452 660-7468
11IL A60 11 6.35 3 660-7421 660-7437 660-7453 660-7469
16IL A60 16 9.525 4 660-7422 660-7438 660-7454 660-7470
16IL AG60 16 9.525 4 660-7423 660-7439 660-7455 660-7471
16IL G60 16 9.525 4 660-7424 660-7440 660-7456 660-7472
22IL N60 22 12.7 5.1 660-7425 660-7441 660-7457 660-7473
27IL Q60 27 15.875 6.35 660-7426 660-7442 660-7458 660-7474
