ISO Metric Hexagon Die With Right Hand

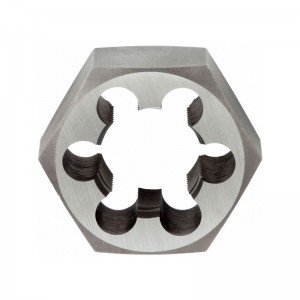

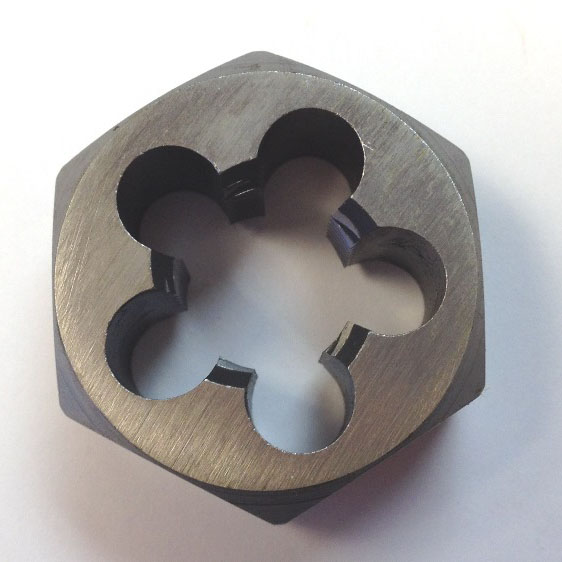

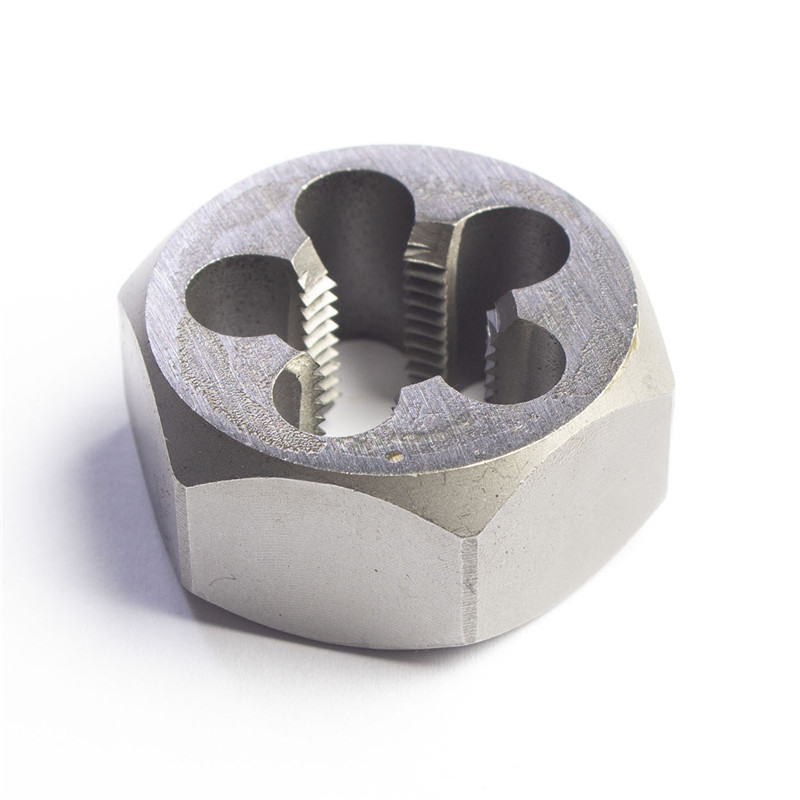

Hexagon Die
● Thread Angle: 60°
● Acurracy: 6g
● Material: HSS/ HSSCo5%
● Standard: ISO
| SIZE | Width | THICHNESS | Carbon Steel | HSS |
| M3×0.5 | 18mm | 5mm | 660-4442 | 660-4461 |
| M3.5×0.6 | 18 | 5 | 660-4443 | 660-4462 |
| M4×0.7 | 18 | 5 | 660-4444 | 660-4463 |
| M5×0.8 | 18 | 7 | 660-4445 | 660-4464 |
| M6×1.0 | 18 | 7 | 660-4446 | 660-4465 |
| M7×1.0 | 21 | 9 | 660-4447 | 660-4466 |
| M8×1.25 | 21 | 9 | 660-4448 | 660-4467 |
| M10×1.5 | 27 | 11 | 660-4449 | 660-4468 |
| M12×1.75 | 36 | 14 | 660-4450 | 660-4469 |
| M14×2.0 | 36 | 14 | 660-4451 | 660-4470 |
| M16×2.0 | 41 | 18 | 660-4452 | 660-4471 |
| M18×2.5 | 41 | 18 | 660-4453 | 660-4472 |
| M20×2.5 | 41 | 18 | 660-4454 | 660-4473 |
| M22×2.5 | 50 | 22 | 660-4455 | 660-4474 |
| M24×3.0 | 50 | 22 | 660-4456 | 660-4475 |
| M27×3.0 | 60 | 25 | 660-4457 | 660-4476 |
| M30×3.5 | 60 | 25 | 660-4458 | 660-4477 |
| M33×3.5 | 60 | 25 | 660-4459 | 660-4478 |
| M36×4.0 | 60 | 25 | 660-4460 | 660-4479 |
Thread Cutting and Repair
The primary application of an ISO Metric Hexagon Die is for cutting new threads or repairing existing external threads on bolts, rods, and other cylindrical objects.
The hexagonal shape (hence the term “Hex Die”) allows for easy adjustment and alignment with the workpiece.
Versatility and Ease of Use
Due to its hexagonal outer shape, the Hex Die can be easily adjusted and secured with standard tools like wrenches or die stocks, making it user-friendly and adaptable to different working conditions.
This feature is particularly useful in tight or hard-to-reach spaces where traditional round dies might be difficult to manipulate.
Compatibility with ISO Metric Threads
As its name suggests, the ISO Metric Hexagon Die is designed specifically for ISO standard metric threads. This standardization ensures compatibility with a wide range of internationally recognized thread sizes and pitches.
This makes the Hex Die essential in global manufacturing and repair work, where adherence to international standards is critical.
Diverse Material Application
Hex Dies are used on various materials including metals like steel, aluminum, and brass, as well as plastics and composites.
This flexibility makes them a go-to tool in numerous industries including automotive, aerospace, manufacturing, and construction.
Durability and Precision
These dies are typically made from high-speed steel or other durable materials, ensuring long-lasting performance and precision in thread cutting.
Aftermarket and Maintenance Uses
In the aftermarket sector, mechanics and repair technicians often use Hex Dies for fixing damaged threads on vehicle parts, machinery, and equipment.
Its ease of use and precision makes it a preferred choice in maintenance and repair operations.
The ISO Metric Hexagon Die, commonly known as a Hex Die, is a versatile tool essential for creating and repairing external threads in compliance with ISO metric standards. Its hexagonal shape facilitates ease of use and adaptability in various
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery
Package Content
1 x Hexagon Die
1 x Protective Case
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
