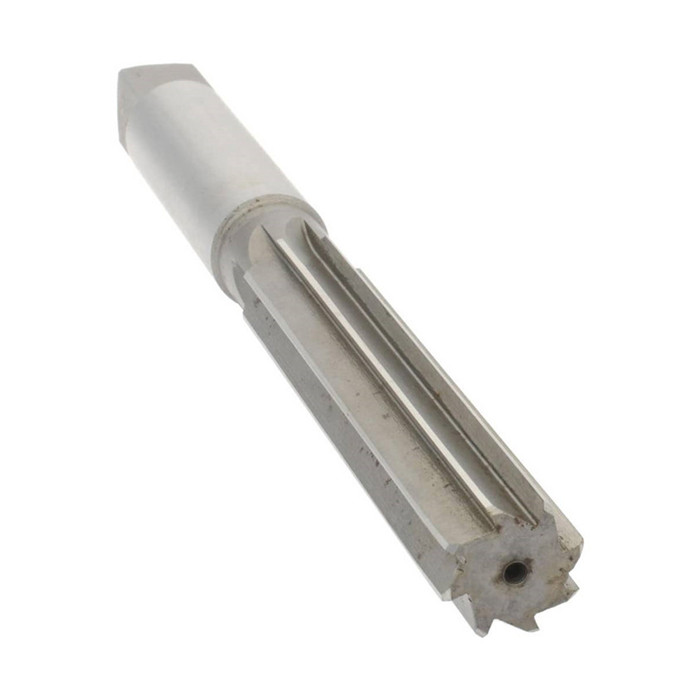

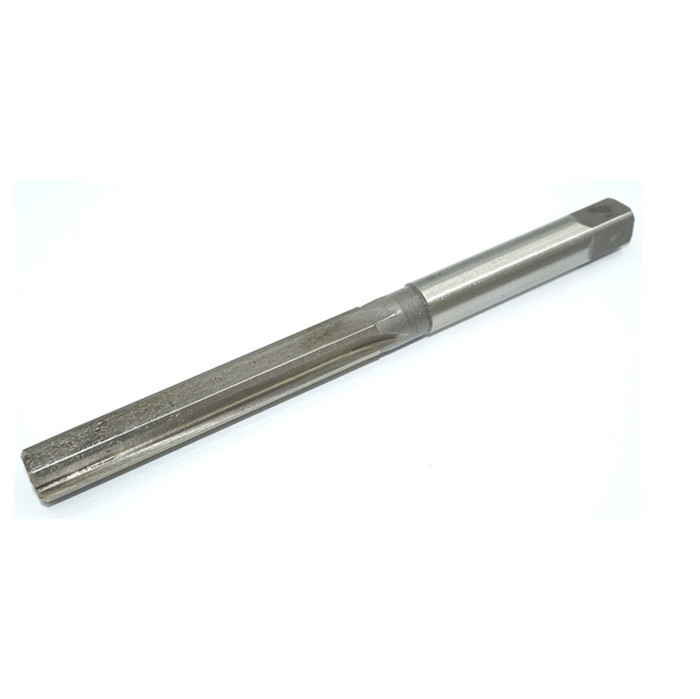

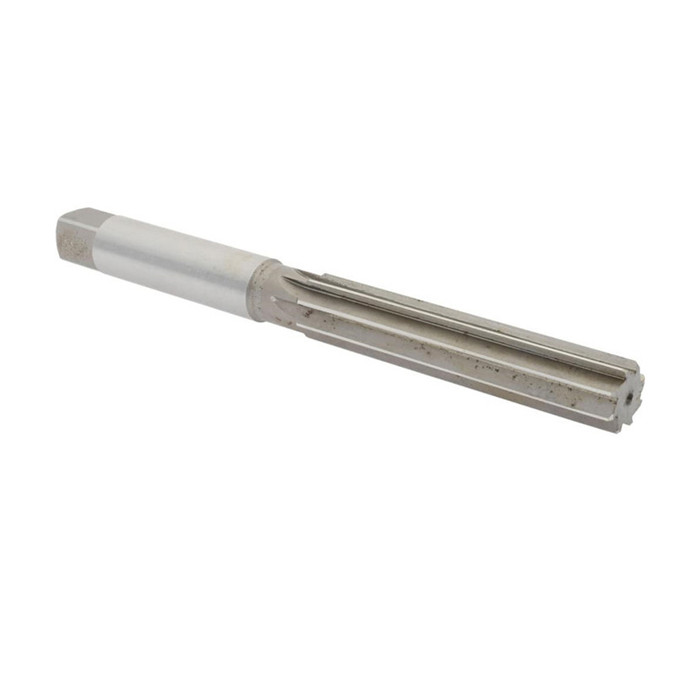

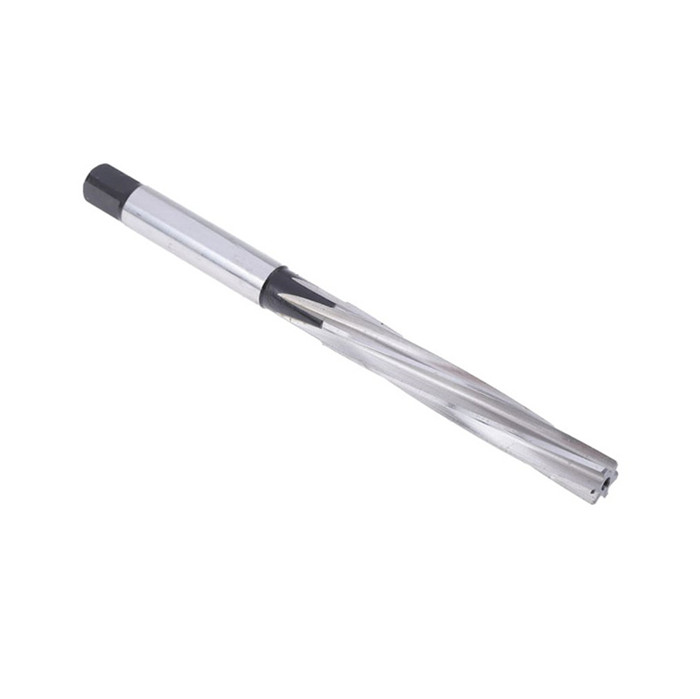

HSS Inch Hand Reamer With Straight Or Spiral Flute
Specification
● Material: HSS
● Coating: Bright Or TiN
● Flute: Straight Or Spiral
| SIZE IN |
FLUTE LENGTH |
OVERALL LENGTH |
STRAIGHT FLUTE | SPIRAL FLUTE | ||
| HSS | HSS-TIN | HSS | HSS-TIN | |||
| 1/8 | 1-1/2 | 3 | 660-6720 | 660-6749 | 660-6778 | 660-6807 |
| 5/32 | 1-5/8 | 3-1/4 | 660-6721 | 660-6750 | 660-6779 | 660-6808 |
| 3/16 | 1-3/4 | 3-1/2 | 660-6722 | 660-6751 | 660-6780 | 660-6809 |
| 7/32 | 1-7/8 | 3-3/4 | 660-6723 | 660-6752 | 660-6781 | 660-6810 |
| 1/4 | 2 | 4 | 660-6724 | 660-6753 | 660-6782 | 660-6811 |
| 9/32 | 2-1/8 | 4-1/4 | 660-6725 | 660-6754 | 660-6783 | 660-6812 |
| 5/16 | 2-1/4 | 4-1/2 | 660-6726 | 660-6755 | 660-6784 | 660-6813 |
| 11/32 | 2-3/8 | 4-3/4 | 660-6727 | 660-6756 | 660-6785 | 660-6814 |
| 3/8 | 2-1/2 | 5 | 660-6728 | 660-6757 | 660-6786 | 660-6815 |
| 13/32 | 2-5/8 | 5-1/4 | 660-6729 | 660-6758 | 660-6787 | 660-6816 |
| 7/16 | 2-3/4 | 5-1/2 | 660-6730 | 660-6759 | 660-6788 | 660-6817 |
| 15/32 | 2-7/8 | 5-3/4 | 660-6731 | 660-6760 | 660-6789 | 660-6818 |
| 1/2 | 3 | 6 | 660-6732 | 660-6761 | 660-6790 | 660-6819 |
| 9/16 | 3-1/4 | 6-1/2 | 660-6733 | 660-6762 | 660-6791 | 660-6820 |
| 5/8 | 3-1/2 | 7 | 660-6734 | 660-6763 | 660-6792 | 660-6821 |
| 11/16 | 3-7/8 | 7-3/4 | 660-6735 | 660-6764 | 660-6793 | 660-6822 |
| 3/4 | 4-3/16 | 8-3/8 | 660-6736 | 660-6765 | 660-6794 | 660-6823 |
| 13/16 | 4-9/16 | 9-1/8 | 660-6737 | 660-6766 | 660-6795 | 660-6824 |
| 7/8 | 4-7/8 | 9-3/4 | 660-6738 | 660-6767 | 660-6796 | 660-6825 |
| 15/16 | 5-1/8 | 10-1/4 | 660-6739 | 660-6768 | 660-6797 | 660-6826 |
| 1 | 5-7/16 | 10-7/8 | 660-6740 | 660-6769 | 660-6798 | 660-6827 |
| 1-1/16 | 5-5/8 | 11-1/4 | 660-6741 | 660-6770 | 660-6799 | 660-6828 |
| 1-1/8 | 5-13/16 | 11-5/8 | 660-6742 | 660-6771 | 660-6800 | 660-6829 |
| 1-3/16 | 6 | 12 | 660-6743 | 660-6772 | 660-6801 | 660-6830 |
| 1-1/4 | 6-1/8 | 12-1/4 | 660-6744 | 660-6773 | 660-6802 | 660-6831 |
| 1-5/16 | 6-1/4 | 12-1/2 | 660-6745 | 660-6774 | 660-6803 | 660-6832 |
| 1-3/8 | 6-5/16 | 12-5/8 | 660-6746 | 660-6775 | 660-6804 | 660-6833 |
| 1-7/16 | 6-7/16 | 12-7/8 | 660-6747 | 660-6776 | 660-6805 | 660-6834 |
| 1-1/2 | 6-1/2 | 13 | 660-6748 | 660-6777 | 660-6806 | 660-6835 |
