Precision Digital Bore Guage From 6-450mm Range

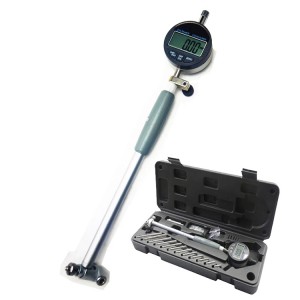

Digital Bore Gauge
● Large measuring range.
● So cost effective that can reach the range of 2 or 3 dial bore gauges.
● With digital indicator.
| Range | Grad (mm) | Depth (mm) | Anvils | Order No. |
| 6-10mm/0.24-0.39" | 0.01 | 80 | 9 | 860-0864 |
| 10-18mm/0.39-0.71" | 0.01 | 100 | 9 | 860-0865 |
| 18-35mm/0.71-1.38" | 0.01 | 125 | 7 | 860-0866 |
| 35-50mm/1.38-1.97" | 0.01 | 150 | 3 | 860-0867 |
| 50-160mm/1.97-6.30” | 0.01 | 150 | 6 | 860-0868 |
| 50-100mm/1.97-3.94“ | 0.01 | 150 | 5 | 860-0869 |
| 100-160mm/3.94-6.30” | 0.01 | 150 | 5 | 860-0870 |
| 160-250mm/6.30-9.84” | 0.01 | 150 | 6 | 860-0871 |
| 250-450mm/9.84-17.72” | 0.01 | 180 | 7 | 860-0872 |
Measuring Internal Diameters
The digital bore gauge stands as an essential precision measuring tool in the field of machining and quality control, specifically designed for accurately measuring the diameter and roundness of holes and bores in various materials. It comprises a finely calibrated adjustable rod fitted with a measuring probe at one end and a digital indicator at the other. The probe, when inserted into a hole or bore, gently contacts the interior surface, and any variations in diameter are transmitted to the digital indicator, which displays these measurements with high precision.
Precision in Manufacturing

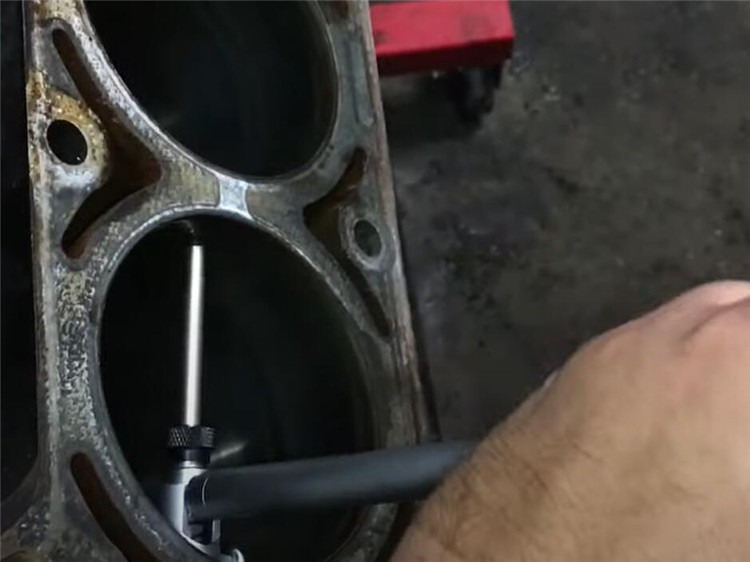

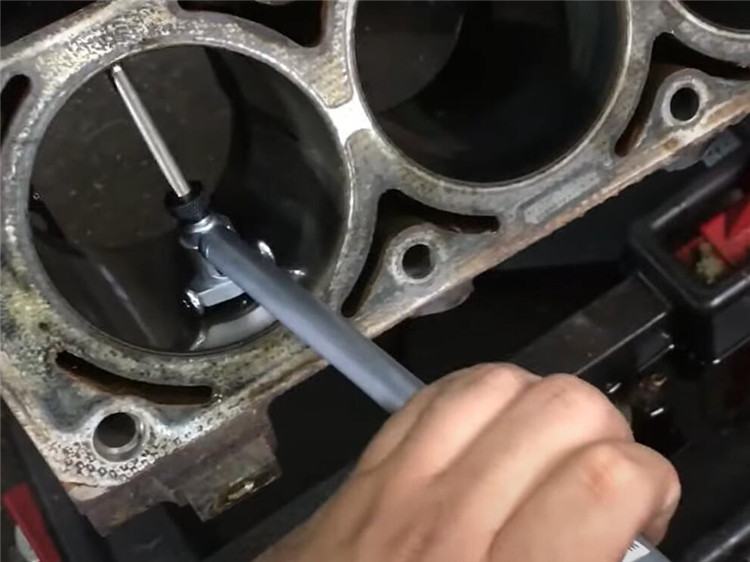

This instrument is invaluable in situations where precise internal measurements are crucial, such as in the manufacturing of engine blocks, cylinders, and other components where tight tolerances are required. It offers a significant advantage over traditional calipers or micrometers in measuring internal diameters, as it provides direct readings of size and roundness deviations.
Versatility in Engineering
The use of the digital bore gauge is not just confined to measuring the diameter. It can also be employed to check the straightness and alignment of the bore, as well as to detect any tapering or ovality, which are critical in ensuring the proper functioning of mechanical assemblies. This makes the digital bore gauge a versatile tool in precision engineering, particularly in the automotive, aerospace, and manufacturing industries, where the accuracy of internal dimensions is paramount. Moreover, the digital bore gauge is designed for ease of use and efficiency. It often comes with a set of interchangeable anvils to accommodate a range of bore sizes. The digital versions of these gauges offer additional features like data logging and easy reading displays, further simplifying the measurement process and increasing productivity.
User Efficiency and Technology
The digital bore gauge is a sophisticated tool that combines accuracy, versatility, and ease of use. It is an indispensable instrument in any setting where precision internal measurement is required, playing a crucial role in maintaining the quality and integrity of machined parts and components.
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery

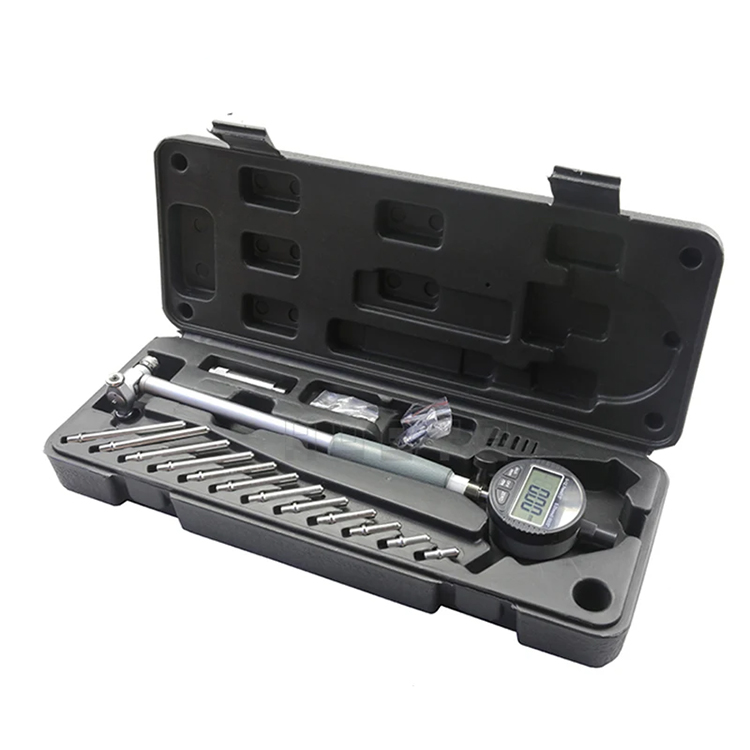

Package Content
1 x Digital Bore Gauge
1 x Protective Case
