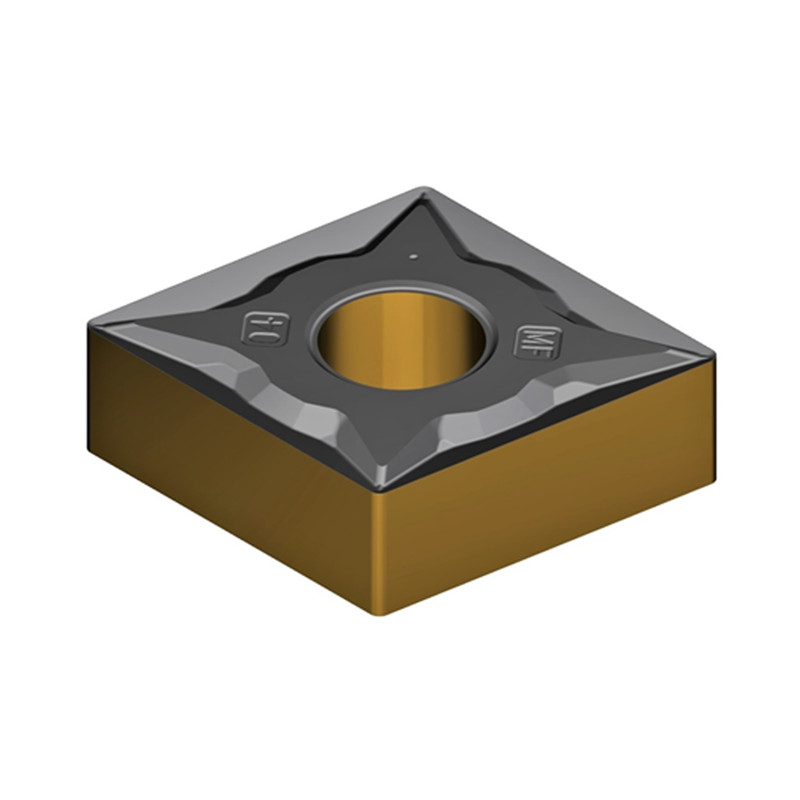

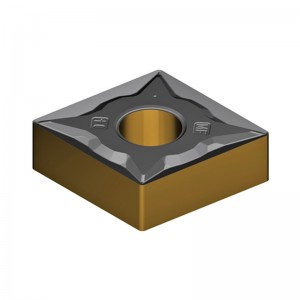

CNMG & CNMM Turning Insert For Indexable Turning Tool Holder

product_icons_img
product_icons_img
product_icons_img
product_icons_img

We warmly welcome you to explore our website and discover the turning insert.
We’re delighted to offer you complimentary samples for testing of turning insert, and we’re here to provide you with OEM, OBM, and ODM services.

Below are the product specifications for :
● ISO code: CNMG & CNMM
● rhombic shape 80°.
● clearance angle 0°.
● Double-sided.
● Tolerance: Class M Or G
● Hole configuration: Cylindrical hole

If you have any questions or would like to inquire about pricing, please don’t hesitate to reach out to us.

WhatsApp Email

Specification

Application

Advantage

Matching Items

Solution

Packing

Specification

● Metric And Inch
● P: Steel
● M: Stainless Steel
● K: Cast Iron
● N: Non-ferrous Metals and Super Alloys
● S: Heat-resistant Alloys and Titanium Alloys

size

CNMG Type

Model L IC S Hole Size RE P M K N S
CNMG090304 9.7 9.525 3.18 3.81 0.4 660-7173 660-7183 660-7193 660-7203 660-7213
CNMG090308 9.7 9.525 3.18 3.81 0.8 660-7174 660-7184 660-7194 660-7204 660-7214
CNMG120404 12.9 12.7 4.76 5.16 0.4 660-7175 660-7185 660-7195 660-7205 660-7215
CNMG120408 12.9 12.7 4.76 5.16 0.8 660-7176 660-7186 660-7196 660-7206 660-7216
CNMG120412 12.9 12.7 4.76 5.16 1.2 660-7177 660-7187 660-7197 660-7207 660-7217
CNMG321 9.7 9.525 3.18 3.81 0.4 660-7178 660-7188 660-7198 660-7208 660-7218
CNMG322 9.7 9.525 3.18 3.81 0.8 660-7179 660-7189 660-7199 660-7209 660-7219
CNMG431 12.9 12.7 4.76 5.16 0.4 660-7180 660-7190 660-7200 660-7210 660-7220
CNMG432 12.9 12.7 4.76 5.16 0.8 660-7181 660-7191 660-7201 660-7211 660-7221
CNMG433 12.9 12.7 4.76 5.16 1.2 660-7182 660-7192 660-7202 660-7212 660-7222

CNMM Type

Model L IC S Hole Size RE P M K N S
CNMM090304 9.7 9.525 3.18 3.81 0.4 660-7223 660-7233 660-7243 660-7253 660-7263
CNMM090308 9.7 9.525 3.18 3.81 0.8 660-7224 660-7234 660-7244 660-7254 660-7264
CNMM120404 12.9 12.7 4.76 5.16 0.4 660-7225 660-7235 660-7245 660-7255 660-7265
CNMM120408 12.9 12.7 4.76 5.16 0.8 660-7226 660-7236 660-7246 660-7256 660-7266
CNMM120412 12.9 12.7 4.76 5.16 1.2 660-7227 660-7237 660-7247 660-7257 660-7267
CNMM321 9.7 9.525 3.18 3.81 0.4 660-7228 660-7238 660-7248 660-7258 660-7268
CNMM322 9.7 9.525 3.18 3.81 0.8 660-7229 660-7239 660-7249 660-7259 660-7269
CNMM431 12.9 12.7 4.76 5.16 0.4 660-7230 660-7240 660-7250 660-7260 660-7270
CNMM432 12.9 12.7 4.76 5.16 0.8 660-7231 660-7241 660-7251 660-7261 660-7271
CNMM433 12.9 12.7 4.76 5.16 1.2 660-7232 660-7242 660-7252 660-7262 660-7272
